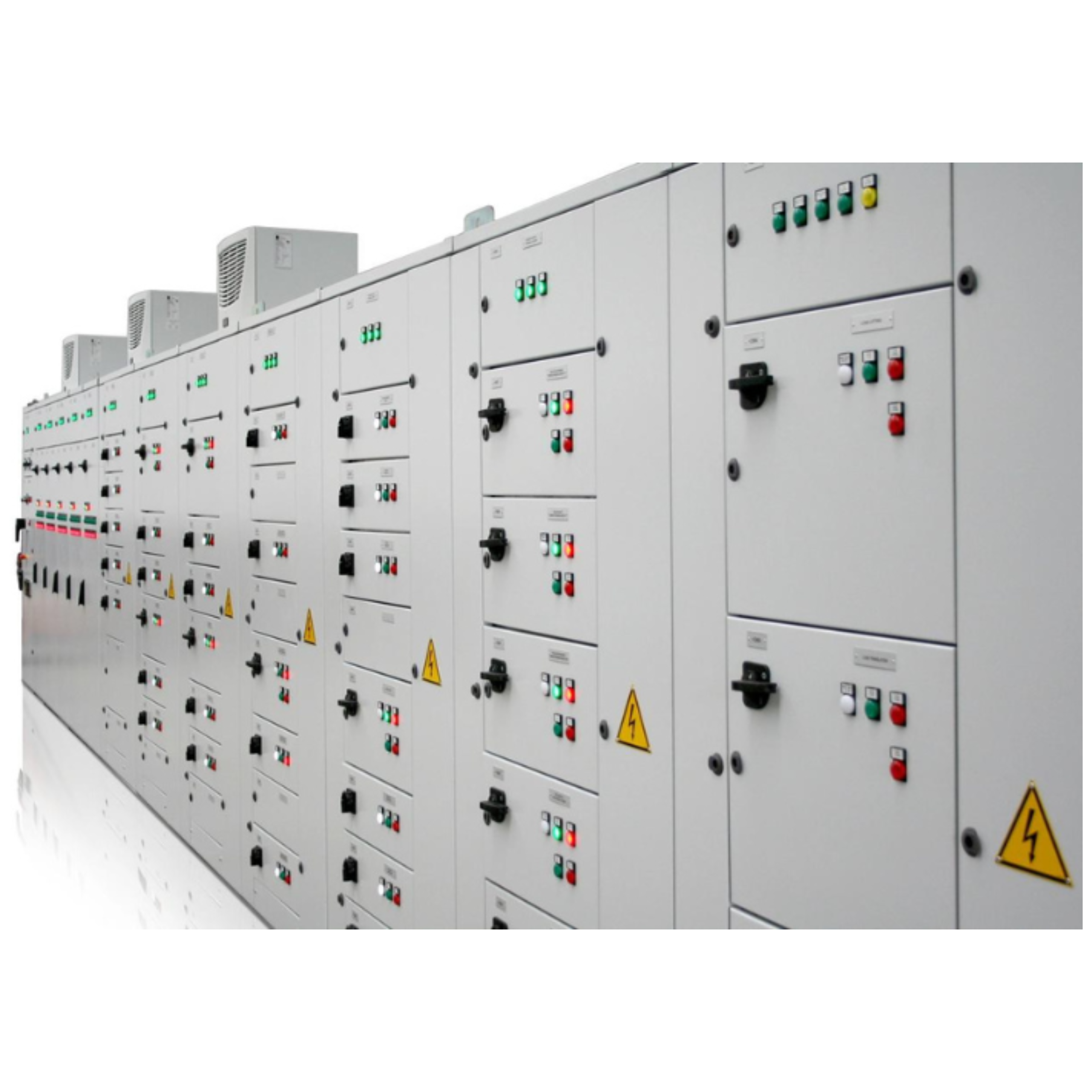

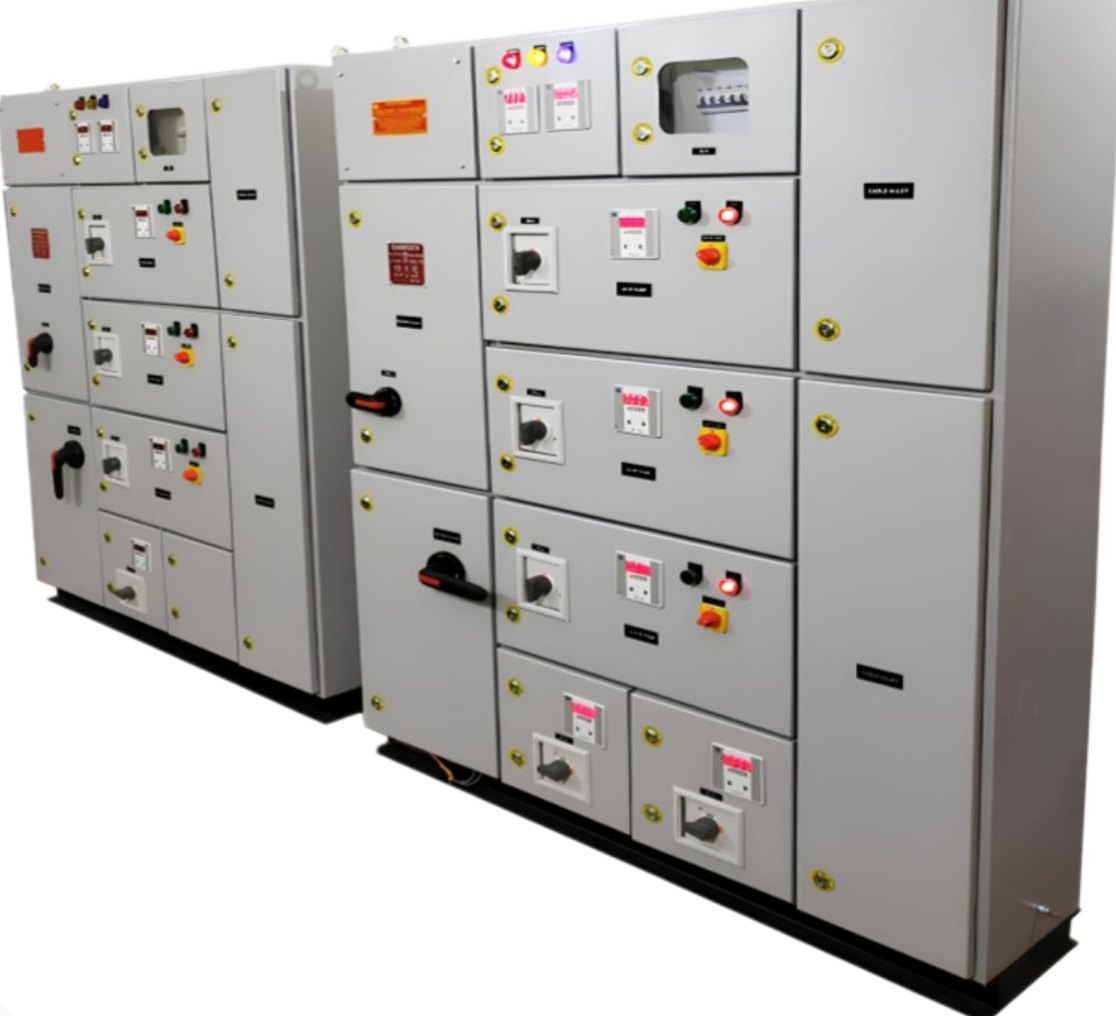

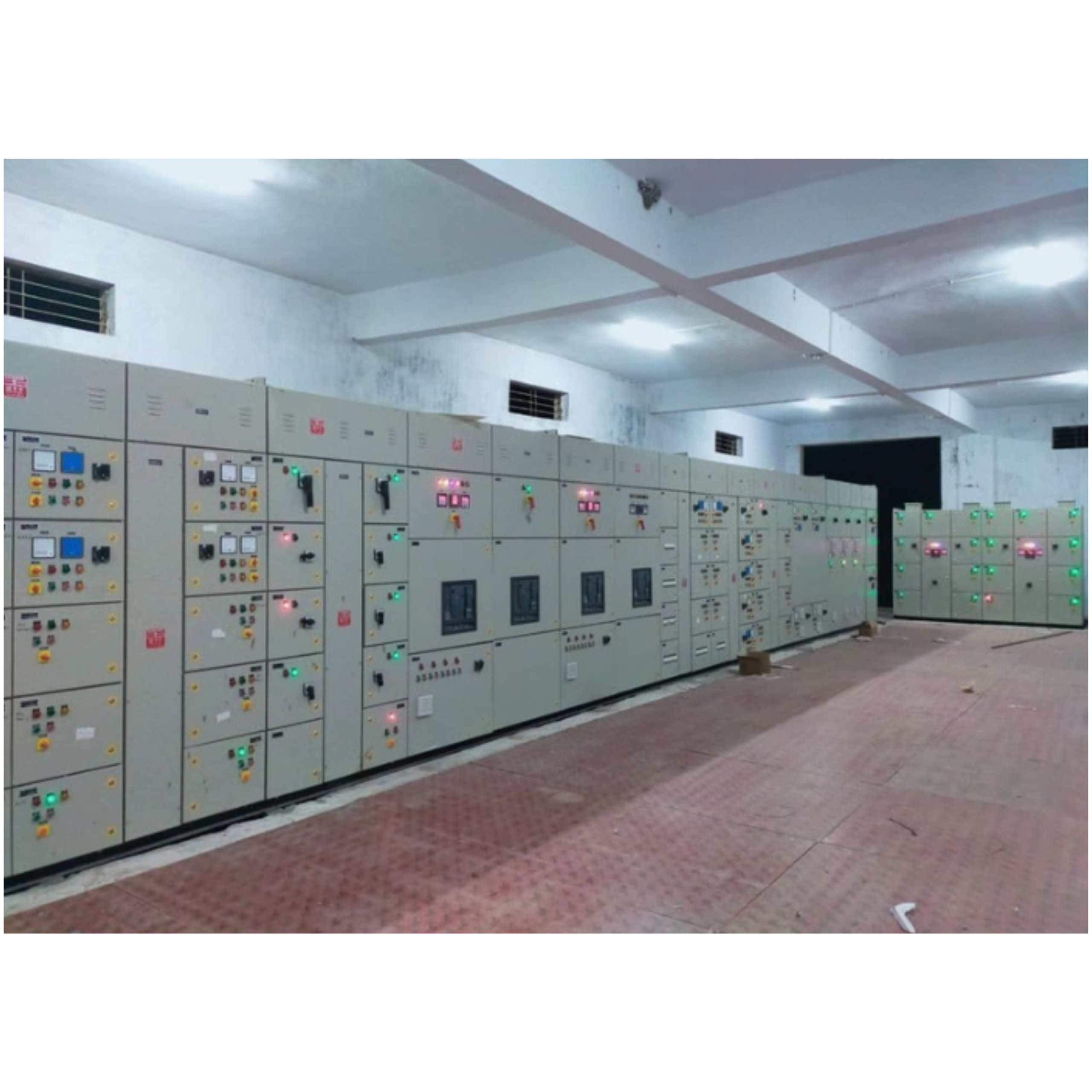

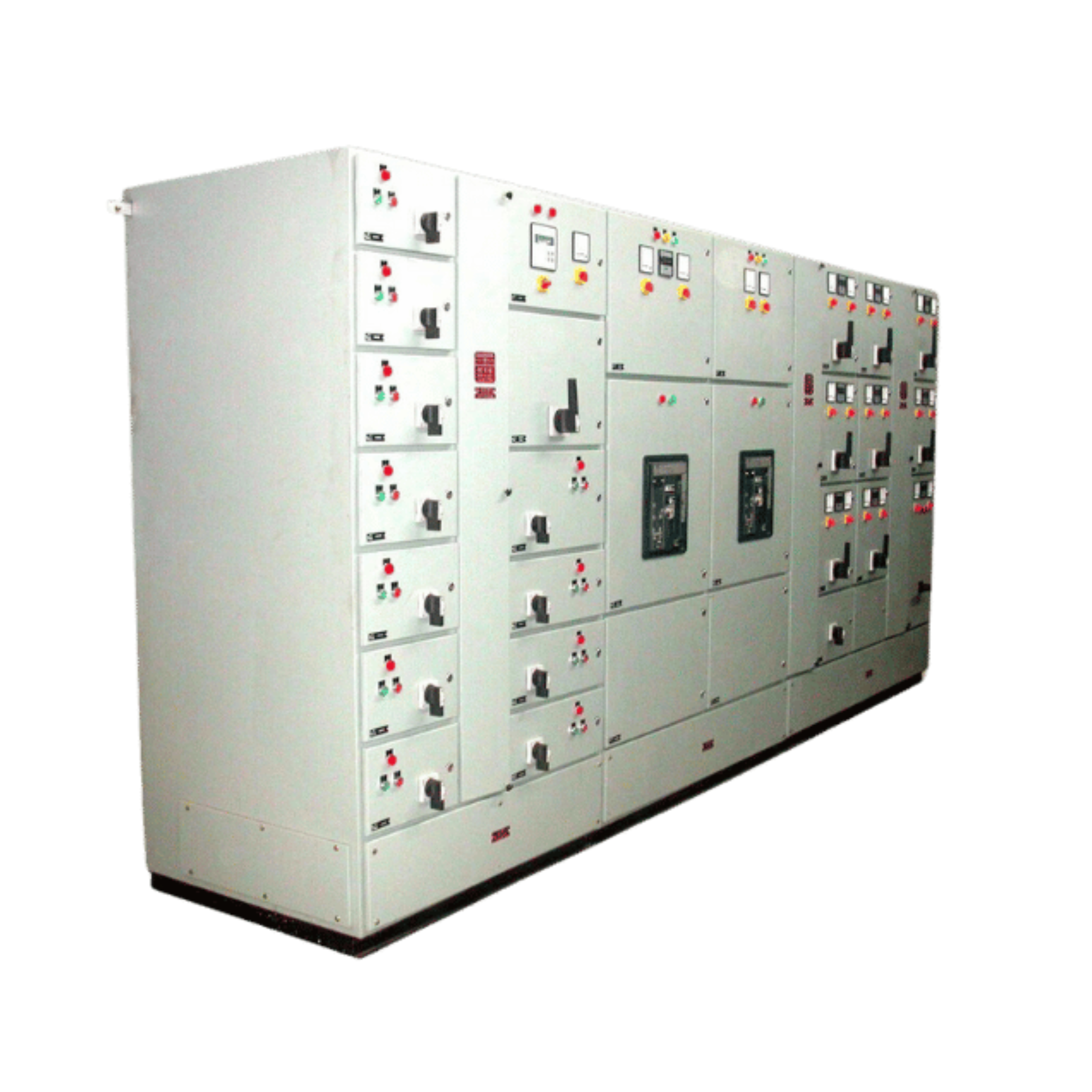

Power Cum Motor Control Center (PMCC)

Combines main power distribution (PCC) and motor starting/protection (MCC) in one panel.

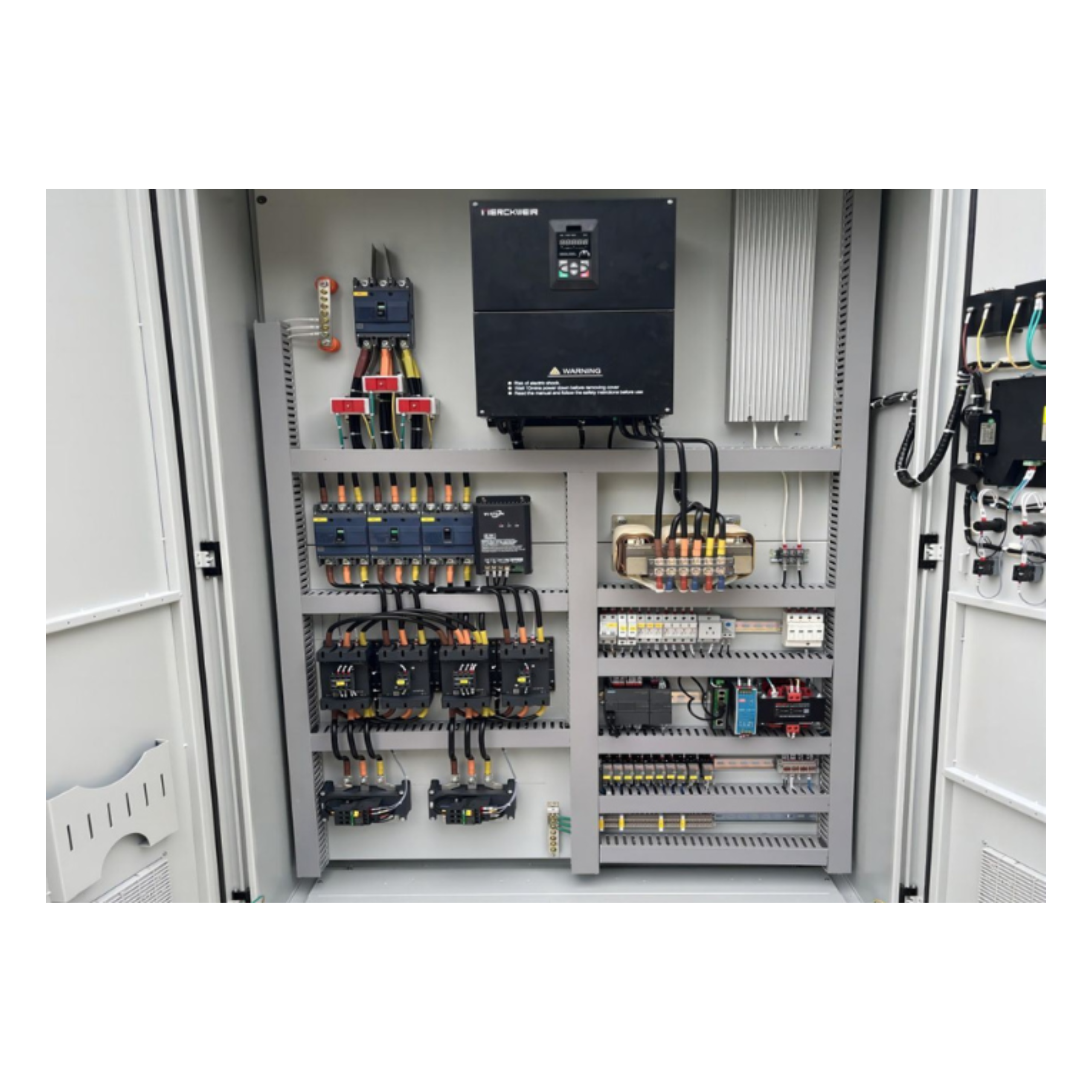

A Power cum Motor Control Center (PMCC) Panel is a combined electrical panel integrating a Power Control Center (PCC) for main power distribution and a Motor Control Center (MCC) for motor starting/stopping/protection — offering centralized management, safety, and energy efficiency for industrial loads via modular, robust designs with breakers, busbars, and overload relays. Incoming section with main circuit breaker and incoming busbars; motor feeders with starters (DOL, Star-Delta), contactors, overload relays and circuit breakers for individual motors; power busbars for distribution within the panel; instrumentation (ammeters, voltmeters, power meters). Modular and compartmentalized for easy maintenance, upgrades and fault isolation; built to specific industrial standards and customer requirements. Used in manufacturing plants, process industries, water treatment, oil & gas and pharmaceuticals.

Available Features

• Modular/compartmentalized design
• As per standards IS 60439 / IS 8623 / IEC 61439
• Ingress protection standard IP42, up to IP55 when required
• Design Isc level up to 65KA for 1 sec, rated current up to 6300 A
• Bus-bar material: EC grade copper / E91E grade aluminum
• Sturdy construction
• Powder coating with RAL 7035 / RAL 7032 or user specified
• Large cabling space with adequate cable supports provided in cable alley
• Doors openable with hinges for 110° opening
• Neoprene gasket 40 to 120 °C
