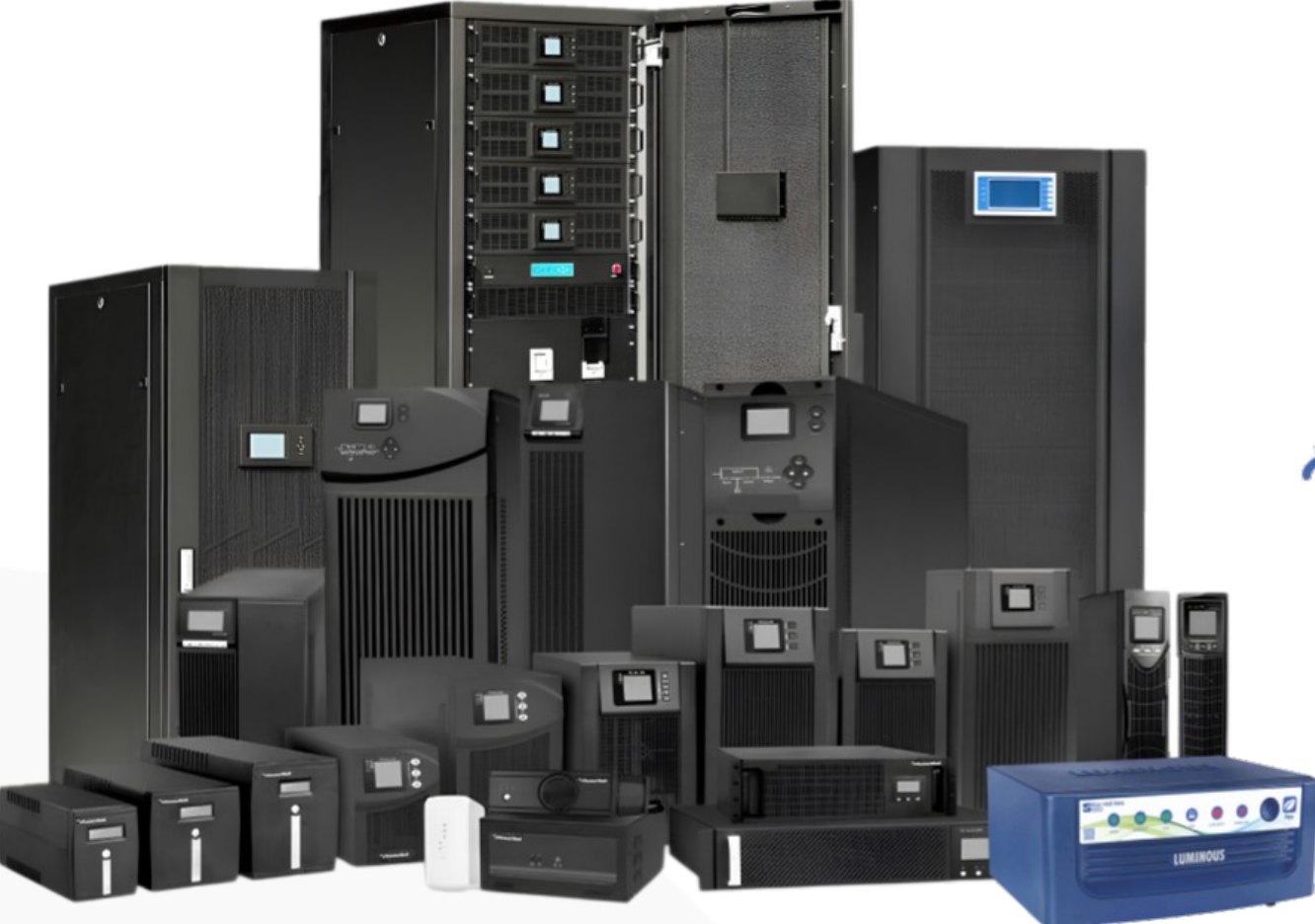

Servo Stabilizer, UPS System & Inverters

Oil & air cooled servo voltage stabilizers plus UPS systems and inverters, 10 KVA to 2000 KVA.

Oil & air cooled servo stabilizer, UPS system & inverters — digital micro-controlled stabilizers with 100% continuous duty for stable, protected power. All types of UPS systems & inverters are available.

Capacity in KVA

10 KVA to 75 KVA air cooled | 30 KVA to 2000 KVA oil cooled

Input range

340-480VAC | 300-500VAC or as per customer requirement

Output voltage

380V/400V/415V (as per customer requirement)

Rate of correction

Up to 100V/sec

Effect of power factor

Nil

Response time

10 msec

Waveform distortion

Nil

Line frequency

47 to 63 Hz

Duty cycle

100% continuous

Controlled type

Digital micro controlled based

Protections

Input high/low voltage cutoff | Output high/low voltage cutoff | Overload cutoff protection | Single phasing prevention | Short circuit protection

Parameters displayed

I/P & O/P voltage L-L, L-N, Hz, current R-Y-B (all phases)

Manual bypass

Optional

Ambient temperature

0° to 55° C
